Gaussian Cloud

Clouds can be included in the atmosphere with sk.constituent.GaussianHeightExtinction which creates a gaussian shaped extinction profile. The extinction profile is defined by a height, width, and total optical depth that are input by the user. An optical property must also be provided to the constituent constructor, along with any inputs needed by the optical property.

import sasktran2 as sk
import numpy as np
import matplotlib.pyplot as plt

config = sk.Config()

altitude_grid_m = np.arange(0, 65001, 1000)

model_geometry = sk.Geometry1D(cos_sza=0.6,
                                solar_azimuth=0,
                                earth_radius_m=6372000,
                                altitude_grid_m=altitude_grid_m,
                                interpolation_method=sk.InterpolationMethod.LinearInterpolation,
                                geometry_type=sk.GeometryType.Spherical)

viewing_geo = sk.ViewingGeometry()

for alt in np.arange(0, 60000, 1000):
    ray = sk.TangentAltitudeSolar(tangent_altitude_m=alt,
                                    relative_azimuth=0,
                                    observer_altitude_m=200000,
                                    cos_sza=0.6)
    viewing_geo.add_ray(ray)

wavel = np.array([310, 330, 550, 600])
atmosphere = sk.Atmosphere(model_geometry, config, wavelengths_nm=wavel)

sk.climatology.us76.add_us76_standard_atmosphere(atmosphere)

atmosphere['rayleigh'] = sk.constituent.Rayleigh()
atmosphere['ozone'] = sk.climatology.mipas.constituent("O3", sk.optical.O3DBM())
atmosphere['no2'] = sk.climatology.mipas.constituent("NO2", sk.optical.NO2Vandaele())

For this example we specify the cloud optical properties using a Mie scattering optical database. This optical property requires that we input particle size through the lognormal_median_radius argument.

mie = sk.optical.database.OpticalDatabaseGenericScatterer(
    sk.database.StandardDatabase().path("cross_sections/mie/sulfate_test.nc")
)
atmosphere['cloud'] = sk.constituent.GaussianHeightExtinction(
    optical_property=mie,
    height_m=15500,
    width_fwhm_m=4000,
    vertical_optical_depth=0.1,
    vertical_optical_depth_wavel_nm=550,
    altitudes_m=altitude_grid_m,
    lognormal_median_radius=np.ones_like(altitude_grid_m) * 105.,
)

engine = sk.Engine(config, model_geometry, viewing_geo)
output = engine.calculate_radiance(atmosphere)

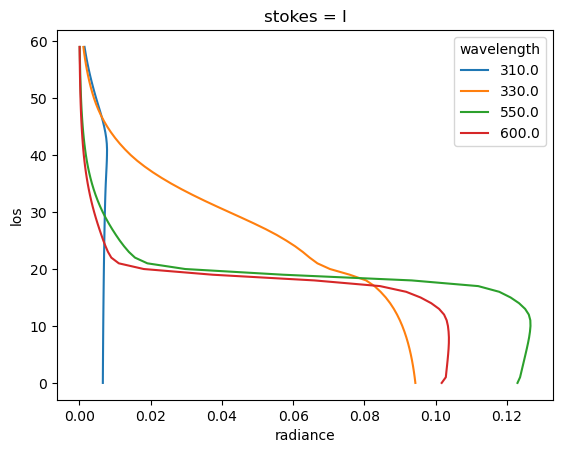

_ = output['radiance'].isel(stokes=0).plot.line(y='los')

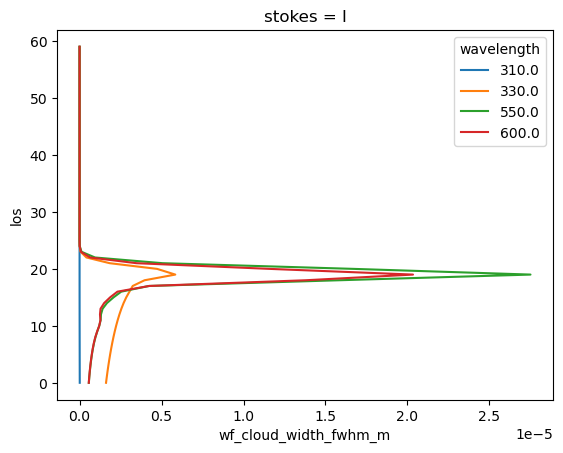

Weighting functions are calculated for height, width, and optical depth as well as for any additional inputs to the optical property. For example, the weighting function for the cloud width can be plotted as follows:

_ = output['wf_cloud_width_fwhm_m'].isel(stokes=0, cloud_width_fwhm_m=0).plot.line(y='los')
